Automatic Rivet Nut Machine, Dual-Motor Design, 3x Faster Riveting - Antec
Brand: Antec
Power Supply: 220V 50Hz
Dimensions: 435*305*395mm
Compatible Nut Types: Steel, iron, stainless steel (customizable)
The automatic rivet nut machine automatically aligns and separates rivet nuts, and uses compressed air to deliver rivet nuts through the feed tube to the gun mandrel. It upgrades heavy, skilled manual rivet nut work into automatic or unmanned production, a major efficiency improvement for the fastening industry.
+86 13556668682
Product IntroductionAntec
Dual-Motor Automatic Rivet Nut Machine - Product Introduction
The dual-motor automatic rivet nut machine features independent drive and spin motors, delivering 3x faster rivet nut installation than standard pneumatic tools, with automatic thread engagement, rivet pulling and mandrel reverse. It installs M3-M12 rivet nuts in one fast, consistent cycle, creating strong, reusable internal threads on thin sheets, tubes and profiles. The machine is ideal for high-volume production, with automatic feeding available and customizable mandrels for different rivet nut sizes. It reduces labor and eliminates thread damage from manual operation.
Core Features
| No. | Core Feature | Description |
|---|---|---|
| 1 | Dual-Motor Design | Riveting speed up to 3× faster, leading the industry |
| 2 | Automatic Feeding | Nuts are automatically aligned and conveyed, eliminating manual loading |
| 3 | Built-in Reverse | Automatic mandrel reverse after riveting for smooth operation |
| 4 | Smart Control | Cycle within 2 seconds; nut feeding speed 0.5–1.2 s |
| 5 | Reliable Quality | Imported components; low failure rate and long service life |
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Brand | Antec | Source manufacturer, factory direct |
| Drive System | Pneumatic, dual core motors | Dual-motor riveting for higher speed |
| Nut Feeding Speed | 0.5–1.2 s per nut | Cycle within 2 seconds |
| Feeding Method | Automatic compressed-air conveying | Rivet nuts automatically aligned, separated and conveyed |
| Applicable Nuts | Steel, iron and stainless steel rivet nuts | Specifications customizable |
| Machine Dimensions | 435 × 305 × 395 mm (L × W × H) | — |
| Machine Weight | 26 kg | — |
| Tube Length | 2 m between nut feeder and rivet gun | Standard |
| Working Voltage | 220V / 50Hz | — |
| Warranty | 1-year whole-machine warranty | Factory installation included; on-site trial available by appointment |
Related ProductsRivet Nut Gun
-
Automatic Rivet Nut Machine, Dual-Motor ···Automatic rivet nut mac···Read More -
Auto-Feed Rivet Nut Gun, Rivet Nut Insta···Auto-feed rivet nut gun···Read More
-
Automatic Rivet Nut Gun, Automotive Part···Automatic rivet nut gun···Read More
-
Robotic Rivet Nut Gun, Riveting Spindle,···Antec robotic rivet nut···Read More -
Automatic Rivet Nut Gun, Robotic Arm Riv···Antec automatic rivet n···Read More -
Robotic Rivet Nut Gun, Unmanned Producti···Antec robotic rivet nut···Read More
Company StrengthsAntec
-
-
Deep roots in riveting and fastening, advancing smart manufacturing

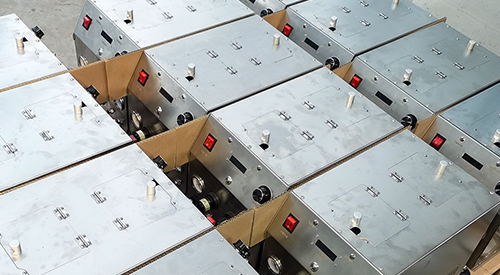

The Antec technical team has 16 years of experience in automatic riveting equipment and builds customized automated riveting solutions. Production and design work closely together, earning strong industry recognition for quality and reputation.
-
-
Independent intellectual property for custom riveting equipment
Our senior engineers have long focused on developing Rivet Nut Gun, combining domestic and international mechanical technology and continuously improving products to fit customer needs. We are certified under an intellectual property management system and hold multiple patents for Rivet Nut Gun.
-
-
Strict quality control system ensures product quality

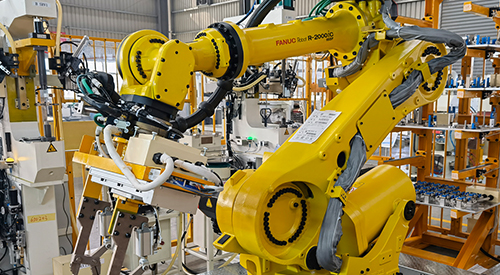

As a source manufacturer that designs and builds Rivet Nut Gun in-house, we use imported components and run 30,000 continuous riveting tests to ensure jam-free operation. The automatic refill system self-corrects, the failure rate is 0.3%, performance is stable, the repeat purchase rate is 78%, and service life reaches 10+ years.
-
-
Dedicated 24/7 service to solve your needs efficiently

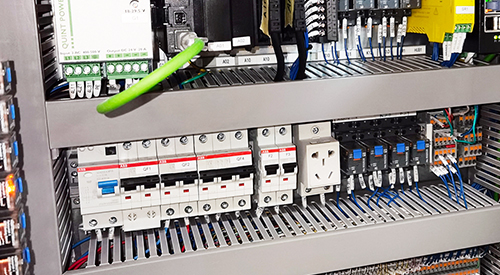

One-to-one online support responds quickly and provides a complete solution within 10 minutes through a timely-response service mechanism. Free maintenance and trial services are available, with a 1-year warranty and factory installation. Non-human issues are covered by a 7-day return and 15-day exchange policy.
